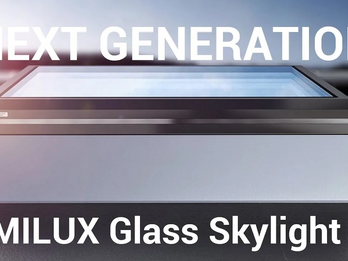

Lamilux FE - Triple-pane skylight

High performance triple pane skylight with a thermal bridge free frame. For use on flat roofs. Advantages Specific flat roof design: integrated drip edge, curb and airtightness “Structural Glazing” allows for a totally flush glass to frame transition that provides the FE with self-cleaning properties and allows uninterrupted water run-off The aluminum frame is fully insulated to mitigate thermal bridges and condensation at the interior Triple pane glass and airtight construction also minimizes sound transmission from the exterior Completely pre-assembled skylight solution mounted on an insulated curb for plug-and-play installation on any roof below 6:12 pitch The FE is available in custom sizes, up to 10' in length with a variety of accessories, including manual and motorized ventilation with options for concealed hardware; reflective interior curbs; and interior and exterior shading. Customizable through alternate glazing options and curb heights, and powder coating of skylight frames in color of your choice Properties Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (6:12 pitch) Uglass: 0.6 W/m2K (0.105 BTU/hr.ft2.°F ) per EN 673 Upstand of 7 7/8" (200 mm) insulated with 2 3/8"" (60 mm) PU foam (0.023 W/mK) SHGC: 0.32 (as high as 0.49 or as low as 0.20 by special order) Visual Transmittance: 0.60 (varies for alternate SHGCs) Snow load: 28 psf (1.34 kn/m2) The Lamilux FE has been tested in accordance with AAMA/WDMA/CSA 101/I.S.2/A440-17 and CSA A440S1-17 and meets all the performance requirements therein. For stock units: Unit fixed with one white Z-clip on interior of curb" | JLC LIVE New England | High performance triple pane skylight with a thermal bridge free frame. For use on flat roofs. Advantages Specific flat roof design: integrated drip edge, curb and airtightness “Structural Glazing” allows for a totally flush glass to frame transition that provides the FE with self-cleaning properties and allows uninterrupted water run-off The aluminum frame is fully insulated to mitigate thermal bridges and condensation at the interior Triple pane glass and airtight construction also minimizes sound transmission from the exterior Completely pre-assembled skylight solution mounted on an insulated curb for plug-and-play installation on any roof below 6:12 pitch The FE is available in custom sizes, up to 10' in length with a variety of accessories, including manual and motorized ventilation with options for concealed hardware; reflective interior curbs; and interior and exterior shading. Customizable through alternate glazing options and curb heights, and powder coating of skylight frames in color of your choice Properties Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (6:12 pitch) Uglass: 0.6 W/m2K (0.105 BTU/hr.ft2.°F ) per EN 673 Upstand of 7 7/8" (200 mm) insulated with 2 3/8"" (60 mm) PU foam (0.023 W/mK) SHGC: 0.32 (as high as 0.49 or as low as 0.20 by special order) Visual Transmittance: 0.60 (varies for alternate SHGCs) Snow load: 28 psf (1.34 kn/m2) The Lamilux FE has been tested in accordance with AAMA/WDMA/CSA 101/I.S.2/A440-17 and CSA A440S1-17
